4.3 '' 480*272 bred temperatur TFT -modul

In the age of intelligence, TFT MODULE helps us to present the required data in the form of images. The quality of the TFT module has a critical impact on its application. What are the advantages of the Victronix 4.3'' 480*272 Wide Temperature TFT Module? At first, it provides customers with a premium display with a 480×272 resolution with 16.7M colors, 80° viewing angle (all directions), 550 cd/m² typical brightness, and 800:1 contrast ratio. Secondly, it passes rigorous reliability tests (ESD protection, vibration/shock resistance, extended thermal cycling) to operate in extreme temperatures from -30°C to +85°C. Besides, it not only features a 24-bit RGB parallel interface with SYNC/DE mode support but also has a 10-die white LED array backlight whose lifespan is from 30,000 to 50,000 hours (50% brightness retention). These make it more suitable for harsh industrial and outdoor settings.

This Victronix 4.3 inch TFT module is small enough to fit in a variety of applications, including handheld devices, automotive displays, and industrial control systems. Despite its small size, the module provides a high-quality display that is suitable for a range of applications.

General Specifications

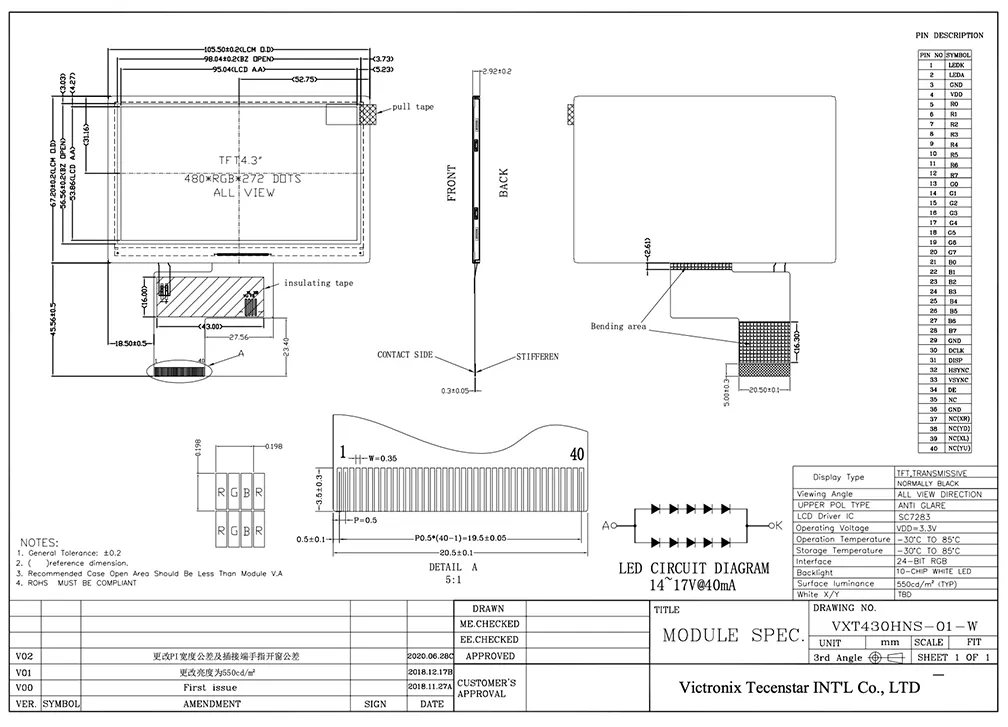

Outline Drawing
